RIDE ON THE PLANET
The combination of a high-detail body and a completely newly designed 4×4 chassis that thoroughly pursues improved running performance opens up new frontiers of play.
The palm-sized R/C car series “Minute” celebrated its 20th anniversary in 2019. In order to further develop the MINI-Z series, which has stood on such a new starting point, a new series has been born with a completely new design aimed at achieving the 'ultimate sense of scale.' Its name is 'Minute 4x4'.
Speaking of the MINI-Z, not only its high running performance but also its high-quality injection body with a sense of scale is one of its attractions, but this MINI-Z 4×4 has the greatest detail improvement with an emphasis on decoration that goes beyond the conventional MINI-Z body. The highlights. The body has also been intentionally made thicker to ensure crash resistance. On the other hand, the 4WD chassis uses a ladder frame similar to the actual vehicle, boasts a long stroke, incorporates an upper A-arm and 3-link rigid axle suspension, and is equipped with a high-torque steering servo specifically designed for the MINI-Z 4×4. In addition to normal driving, it has the ability to easily clear rough roads with obstacles reminiscent of a rock crawling field. The dedicated 130 motor, which has excellent torque characteristics in the low to medium speed range, also brings out the driving performance of the MINI-Z 4×4. In this way, the MINI-Z 4×4 has both a high-detailed body with excellent visuals and a high level of driving performance that is suitable for full-scale rock crawling, but the only thing you need to purchase separately before driving is 8 AAA alkaline batteries. It's also good that it's easy! You can enjoy driving it as normal, you can try rock crawling, you can aim to improve the driving performance, you can also dress it up and be particular about its appearance... With so many options for play, why not experience the world of a full-fledged 4x4 with this one car?

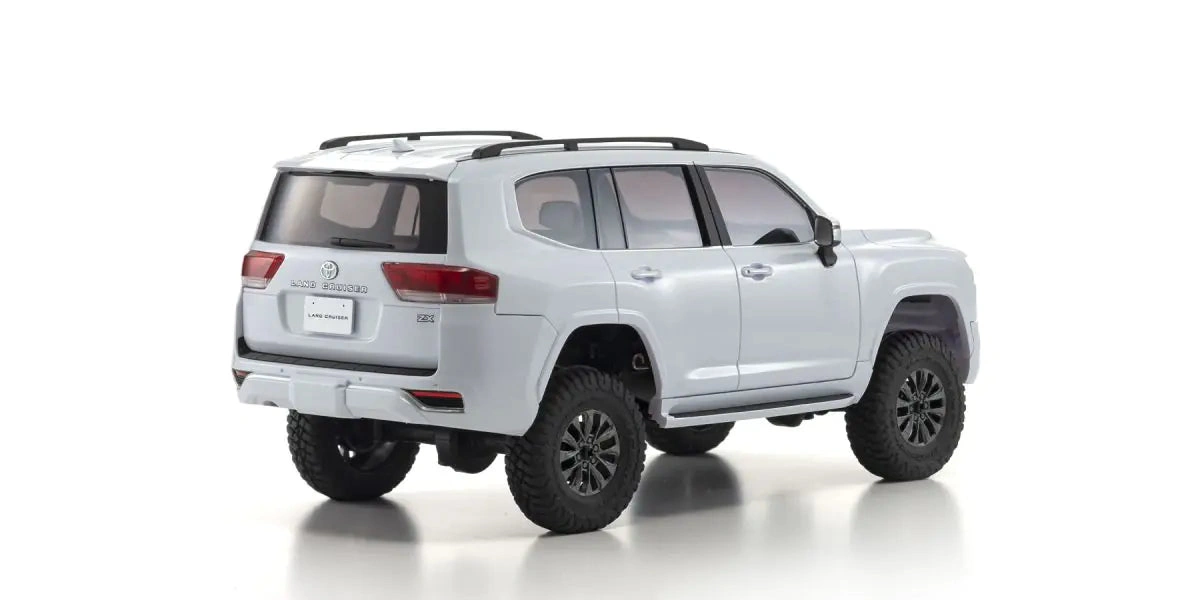

The Land Cruiser is recognized as Toyota's luxury cross country model. The '300' was released in 2021 and comes equipped with V6 turbo engine to power its simple yet robust body frame in comfort with high performance over the toughest roads.
Injection molded bodies enhanced with accessory parts recreate a level of detail in the MINI-Z 4x4 series that surpasses all MINI-Z bodies that have come before.
PAINTED BODY
The factory-painted body has so much detail it rivals that of a die cast model. Thicker body material provides more durability, enabling it to survive more aggressive off-road runs. Door mirrors are produced with a combination of gloss and matte finishes, while wipers, windshield washers, rain rails and door hinges add even more realistic details.
FRONT MASK
Eye-catching front mask with separate large grille draws attention with its sharp edges while retaining the dignified strength of the Land Cruiser. Design of the bumper shape allows for clear approach angles, enabling the Land Cruiser's serious off-road capability with comfort for everyday driving; one of the many reasons for its enduring popularity.
LIGHTS
Headlights and taillights are produced as clear parts for a more realistic appearance. In addition, higher positioning of the lamp limits damage that may occur while driving on rough roads. LED headlights (MZW429R) can be installed to enhance body styling.
OTHER DETAILS
Features precisely formed parts such as roof press lines, roof rails, sunroof, and antenna. High attention to detail is exemplified in parts such as side mirrors and the ZX badge on the rear for its enduring popularity.
CHASSIS & GEOMETRY DETAILS
The same ladder frame and multi-link rigid-axle suspension commonly used in popular 1:10-scale off-road models, is condensed into Mini-Z size for the most articulation and performance available in any mini RC truck.
SOLID AXLES
Solid front and rear axles feature links with steel rods and captured rod ends. Ring and pinion gears, in addition to other gears and components, feature metal construction to withstand the heavy loads under the toughest driving conditions.
LADDER FRAME
The Mini-Z 4x4 incorporates a ladder frame design with steel vertical plates, in combination with various molded parts, to deliver the ultimate balance of of rigidity and flex for superior performance and durability.
STEEL LINK & BALL END
The upper A-arms and lower links that connect the front and rear axles to the chassis, feature strong steel links and captured ball ends. This is the ideal design for strength, maximum range of motion, and smooth operation.
COIL OVER TYPE, SHOCK ABSORBER
The newly designed shock absorbers feature 360-degree spring retainers, which means they can't be lost on the trail and the springs are more likely to re-seat when the suspension settles after hard impacts or operating at the extreme limits of the suspension. The spring retainers simply cannot come loose.
ADJUSTABLE WHEELBASE
The wheelbase can be changed to 110 or 120mm by changing the length of the spacer on the upper A-link. The 4Runner is set to 110mm.
STEERING ANGLE
The front axle features ideal Ackermann geometry. Combined with the advanced design of the axle housing and the other steering components, This model features the tightest turning radius in Mini-Z history. It means the Mini-Z 4x4 has exceptional handling capability for anything ranging from casual driving to hard-core crawling.
DRAG LINK & TIE ROD
The steering servo drag link and the rugged molded tie rod are part of a steering system that delivers an incredible amount of steering angle, which results in excellent rock crawling capability.
TIRES & WHEELS
Tires and wheels that are specific to each model are a major focus of the Mini-Z 4x4. This model features a scale reproduction of the BF Goodrich Mud-Terrain T/A KM3 tires mounted on Suzuki factory-replica wheels with an aluminum-like silver finish.
BATTERY TRAY
Four AAA batteries are located on top- front section of the chassis to ensure good ground clearance and achieve realistic rock crawler performance.
DRIVELINE
The gearbox features molded covers and includes 6 pinion gears that allow adjustment from ultra-low gearing for steep terrain, through to high-speed gearing for smooth running on flat roads. In addition, the need for annoying backlash adjustments has been negated with the special spacer mounted on the outside of the motor.
SLIPPER CLUTCH
A standard slipper clutch protects the drive system by reducing the torque when excessive load is applied. Note the metal upper shaft and primary gear for durability.
The best drive efficiency is accomplished with the included set of 18 ball bearings, factory installed to ensure the smoothest most efficient operation possible, right out of the box
130 MOTOR
The Mini-Z 4x4 features a specially- designed high-torque motor that is unique in the Mini-Z World. It's optimized for maximum torque, and it develops more power at lower speeds.
STEERING SERVO
The component steering servo features its own casing to allow enhanced performance, and it connects to the receiver/ESC with an independent connector.
NEW SPEED CONTROLLER
The on-board electronics are also unique to the Mini-Z 4x4, with special features that improve the crawling experience. The accessory ports on top of the board allow an optional LED light set (MZW429R) to be easily plugged in to enhance realism.
Steering wheel: Sponge grip of the steering wheel provides comfortable fit for precision control feel.

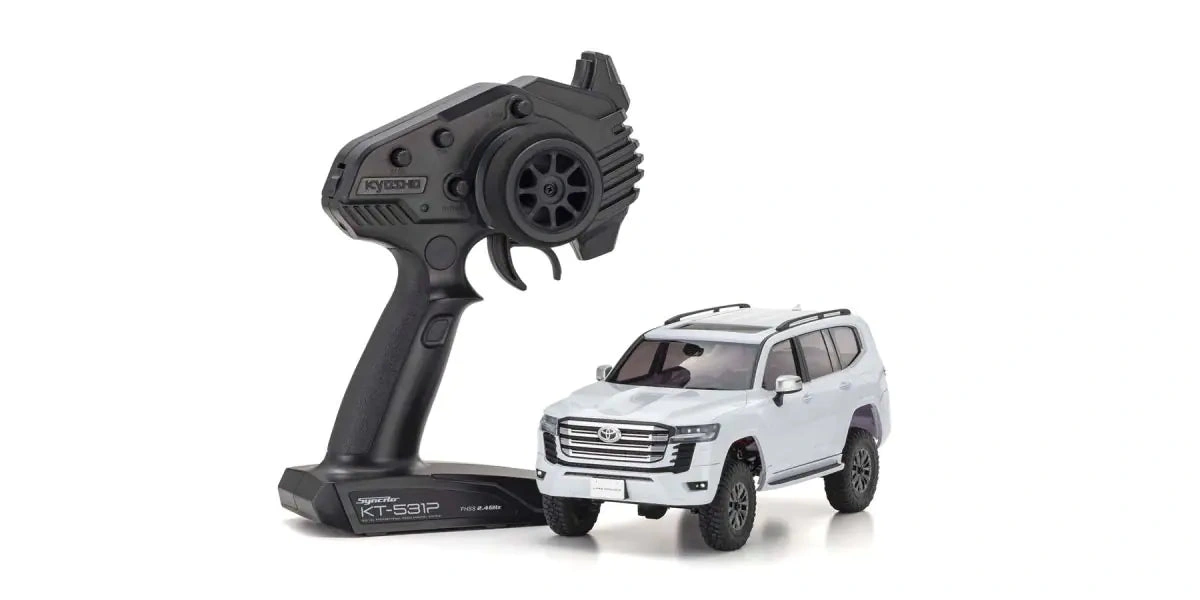

Included KT-531P transmitter operates on FHSS 2.4GHZ and features steering/throttle trim in addition to dual-rate adjustment of steering angle and LED control functions. Control feel has improved with adoption of sponge steering wheel. Gyro effect can be fine-tuned through volume adjustment.
*Not compatible with conventional ASF/MHS/FHS 2.4GHz systems. Also not compatible with KO I.C.S systems.
■Length 207.0mm
■Width 88.5mm
■Height 90.0mm
■Chassis Type MX-01
■Wheel Base 120mm
■Tread F/R:72.7mm
■Weight 242.0g (excl. battery)
■Motor/Engine 130 Class
■Gear Ratio 55.44：1/46.20：1/39.60：1/34.65：1/30.80：1/27.72：1
■Front Tire Diameter Φ37.0mm
■Rear Tire Diameter Φ37.0mm
■Front Tire Width 12.0mm
■Rear Tire Width 12.0mm
■Battery 4 x AAA alkaline
■Transmitter Syncro KT-531P
■Speed Approx. 2.7km/h〜5.4km/h
■Running Time Approx. 60 mins
●Complete chassis with built-in electronics.
●Factory-painted body complete with many fine details
●KT-531P 2.4GHz transmitter
●Pinion gear set（10T、12T、14T、16T、18T、20T）
●3 types of pinion gear spacers
