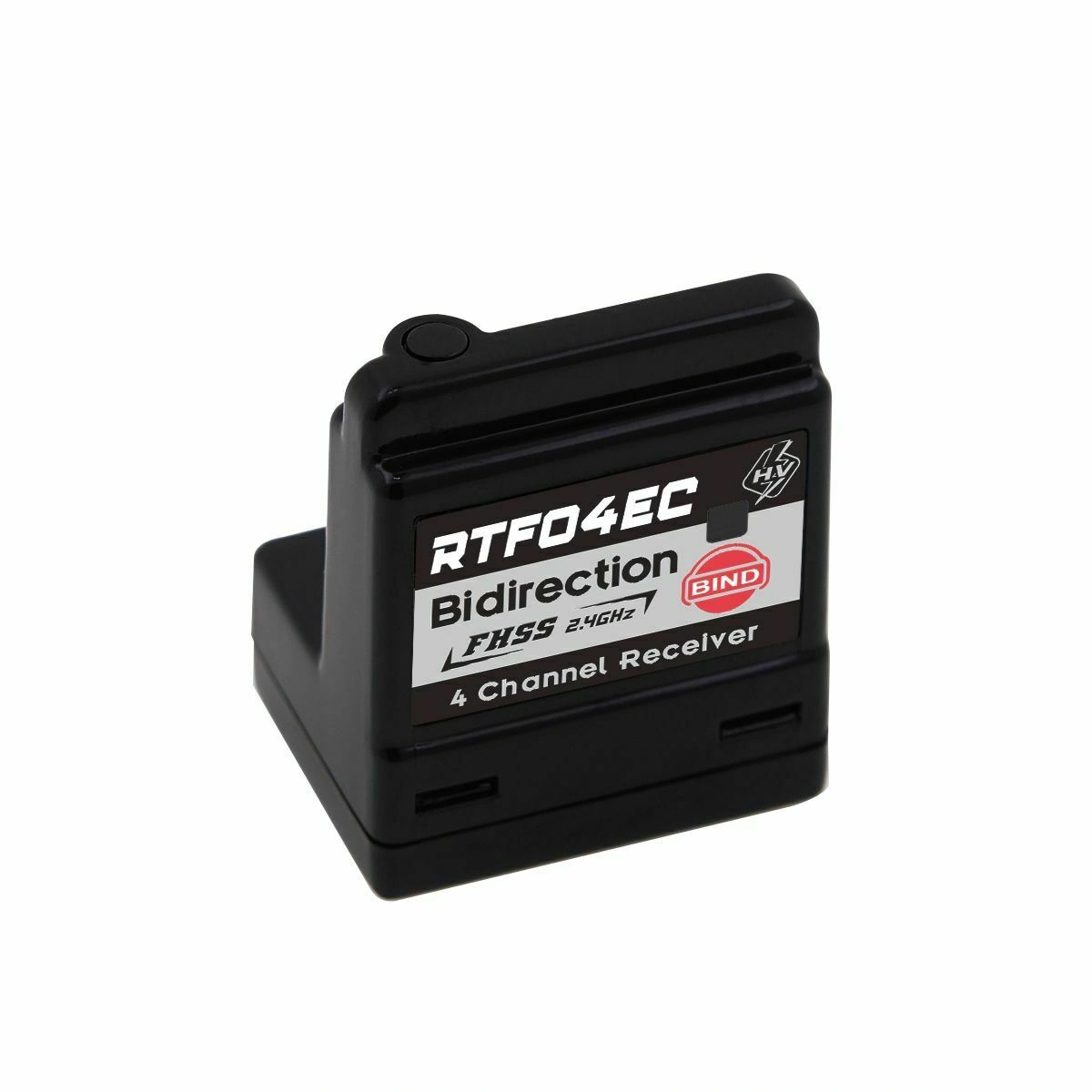

The RTF04EC affordable FUTABA T-FHSS compatible receiver is made in T-shape, built-in antenna and full channel 4CH+S.BUS2, it is available to connect to 1-2s lipo. Bidirectional communication makes it easy to bind by automatically locking into the correct transmitter and save the record. It is suitable for all types of RC cars.
Feature
1)Bidirectional communication system, monitor the receiver voltage by transmitter in real time;
2)Compatible stabilizing voltage, operating voltage can up to 1-2s lipo, sudden low voltage won't be out of control;
3)High sensitivity built-in antenna, full channel 4CH+S.BUS2, suitable for all types of remote control cars, simulation rock crawlers;
4)T-shape design, compact size to save more space for rc car.
Specification
Operating Voltage：3.5V~8.4V
Dimension： 23.6x18.4x28.4mm
Weight：7.3g
No. Of Channels：4CH+S.BUS2
PWM Mode Normal/ High Speed
Bind Procedure
The operation mode of this receiver is bidirectional communication, each transmitter only can bind with one transmitter at one time. Once binding is successful, the receiver will save the record automatically. If need to change to use with new transmitter, it need to bind again with the new device.
1)Keep the transmitter and receiver within 0.5 meter;
2) Turn on the transmitter, get to the SYSTEM menu and select BIND;
3) Power on the receiver, and long press the BIND button for 2 seconds to enter the code matching status, the red LED will flash, then turn green, binding is succeeded;
4) Exit the binding mode at this moment, restart the power supply of the transmitter, the LED light is solid green, that means binding is successful. Otherwise, please repeat the above procedure if binding is failed.
