Mobula6 ECO HDZero: Tiny Terror, Huge Thrills! 1S Whoop Drone. Get Airborne!
Alright, buckle up buttercup because we're about to launch this thing into the stratosphere This ain't just some… thing… this is a vibe a whole mood A portal to another level of awesome Maybe you're thinking "meh" but trust me you haven't seen anything like it Its got that It factor that something special that je ne sais quoi… or maybe you do know And if you do you know you need this Forget what you think you know Get ready to upgrade your life your style your everything Treat yourself because you deserve it You're welcome
more

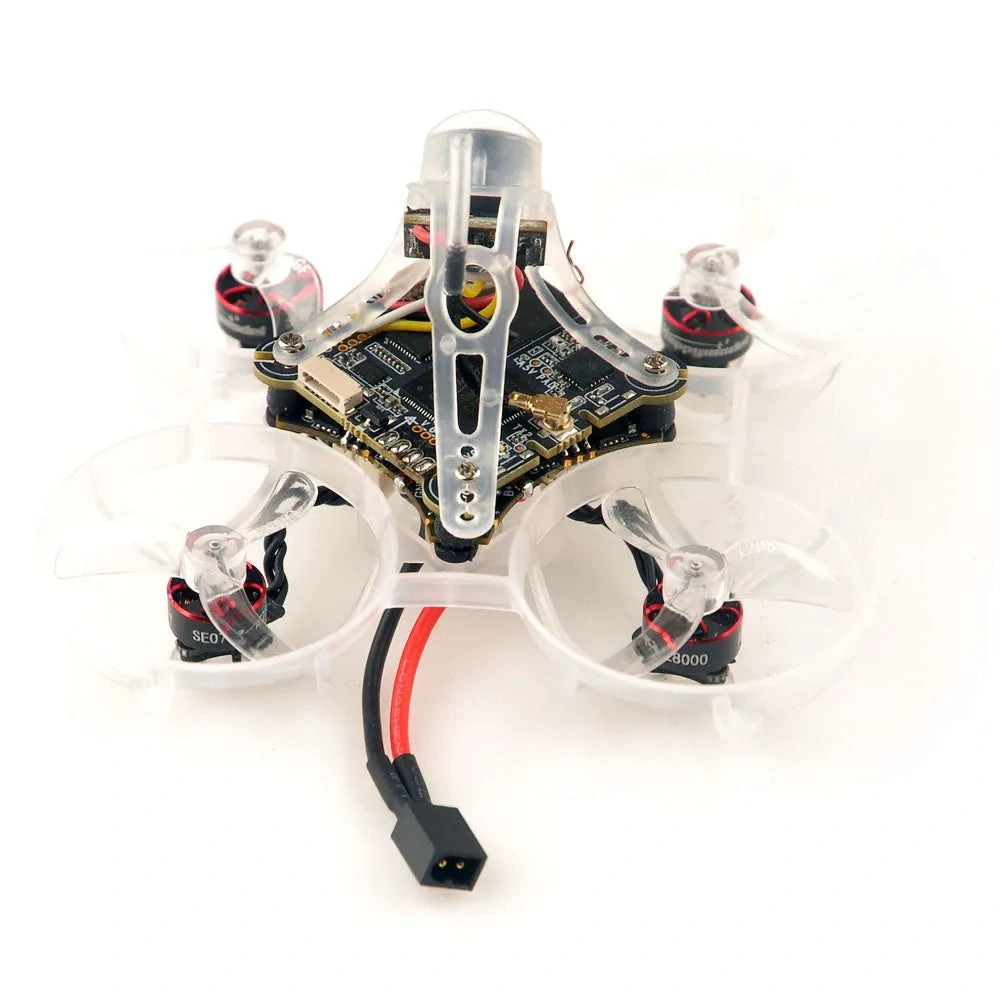

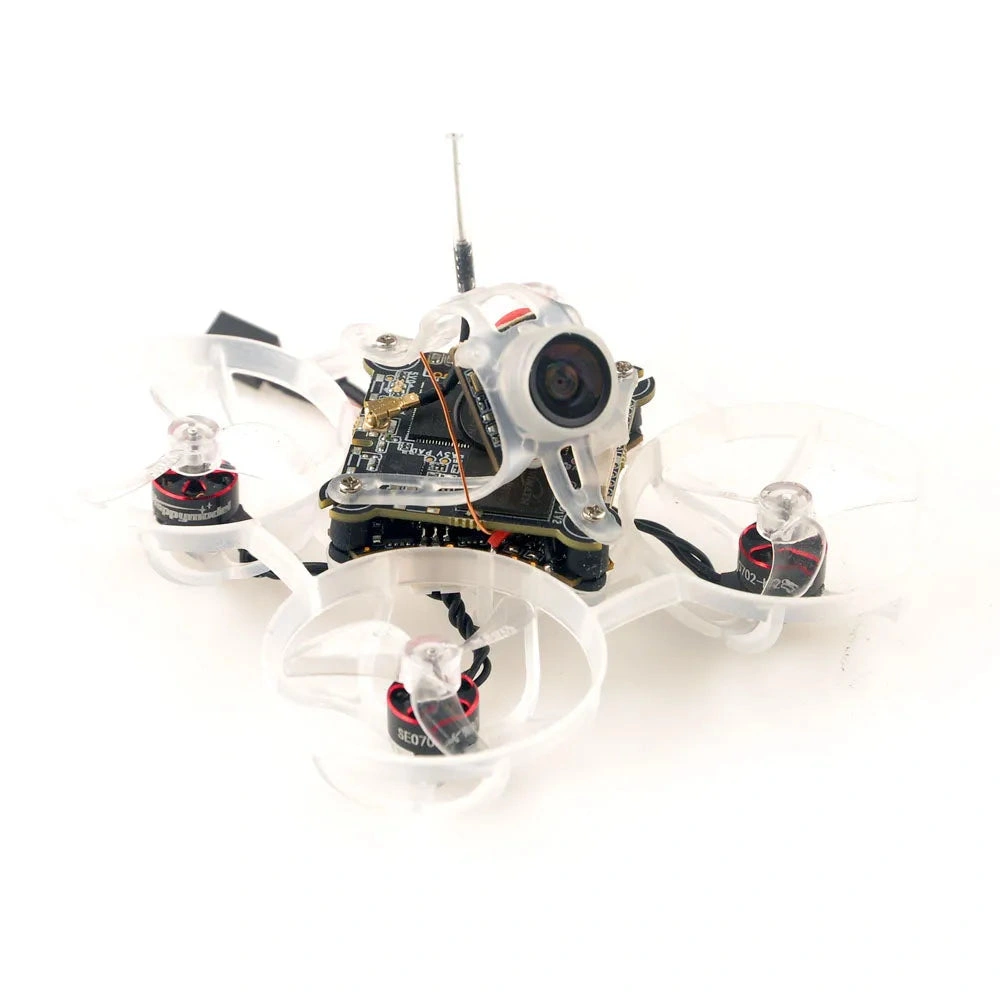

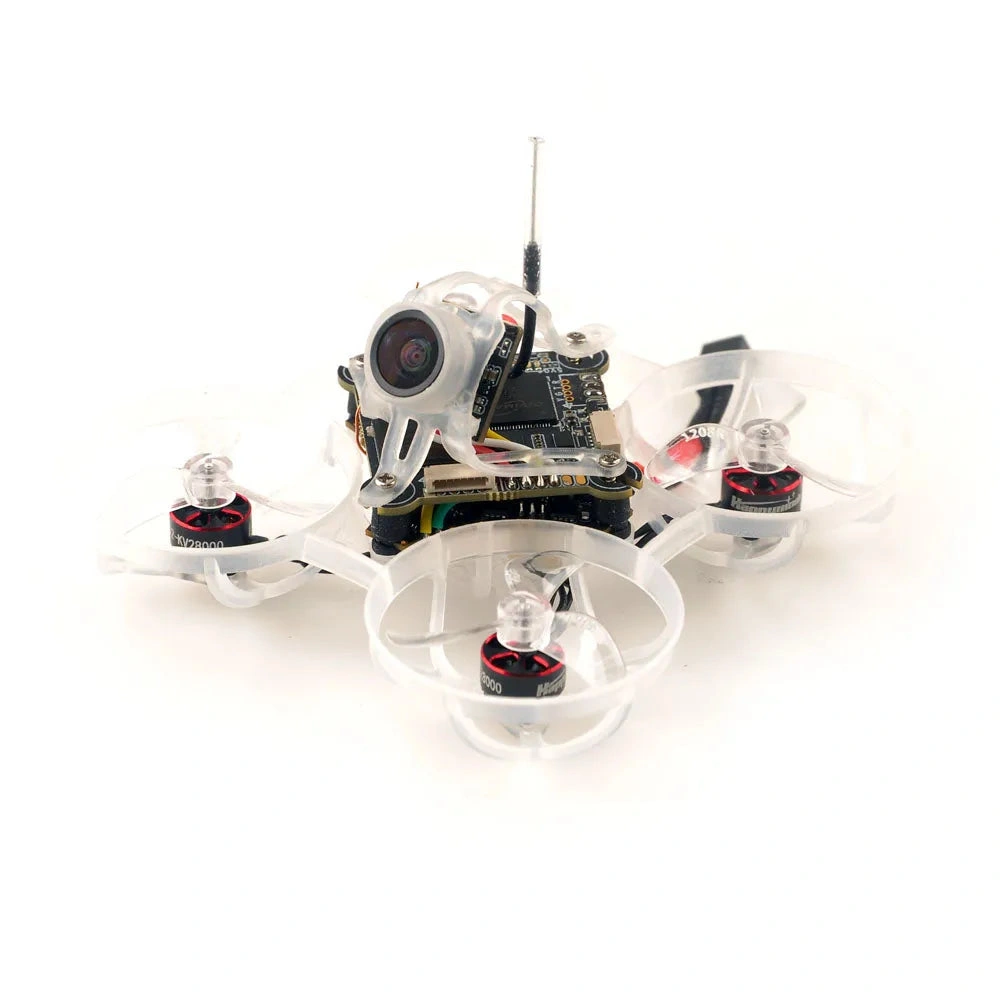

Happymodel Mobula6 ECO 2024 1S 65mm HDZero Ultra Light Micro FPV Whoop Drone
ETA: Around Early April
Features:
AIO Flight controller with Serial ELRS Receiver
Compatible with HDZERO system
Equipment with the lightest brushless motors-SE0702 only 1.49gram
HDZERO NEW ECO VTX and Camera ready
Smooth and powerful
Compatible for 1S Lipo/LIHV
Onboard blackbox read
Specifications:
Brand Name: HAPPYMODEL & HDZERO CO-Brand
Model: Mobula6 ECO 2024
Frame wheelbase: 65mm

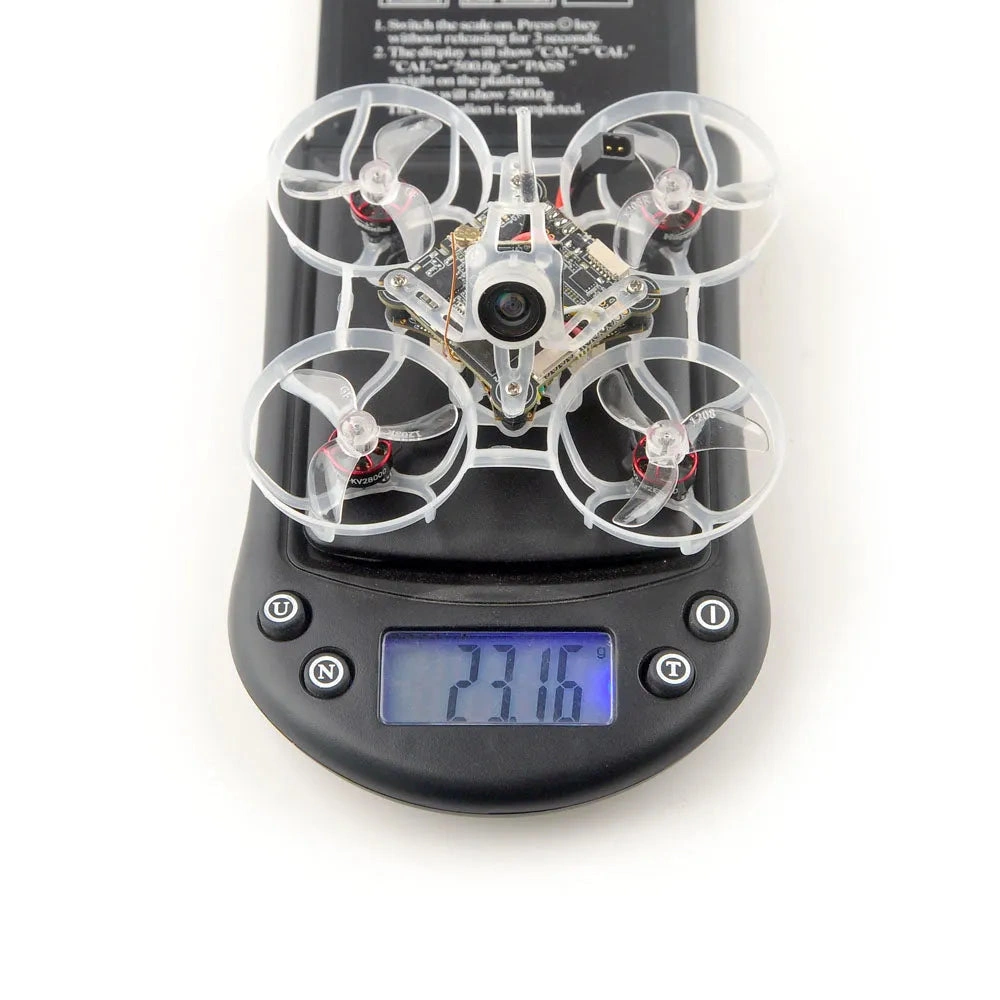

Weight: 23.16 gram without battery
Size: 81mm*81mm*45mm
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: GNB A30
Motor
Mode: SE0702 KV28000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ9.5mm*14mm
Weight(g):1.49g
No.of Cells(Lipo):1S only
Propellers
Materials: PC
Inch: 31mm
Pitch: 0.8 in
Weight: 0.21g
Mount hole diameter: 1mm
Flight controller
SuperX HD ELRS
Betaflight 4.4.2 firmware ready
Firmware target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: BMI270 or ICM42688P (SPI connection)
Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone
Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read
Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update
Bluejay ESC Firmware ready
Built-in 5V 1A BEC
Built-in voltage detection
No betaflight analog osd chip
Onboard 4in1 ESC
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support ESC-Configurator and BLHELI_S Suite configurator
Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz
Default protocol: DSHOT300
Onboard Serial ExpressLRS 2.4GHz Receiver
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1
The same hardware with Happymodel EP1 receiver
Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through
HDZERO ECO VTX
Composite HD Video interface
1S-3S Input
25mW/200mW RF output
25.5×25.2 M2 soft mounting
Antenna Retention
32.4×32.5mm (29x29mm inner)
4.5grames/4mm Thickness (w/o shielding)
HDZERO ECO Camera
Image Sensor : 1/3”
Resolution: 720@60fps 4:3
LENS: FOV D:150° H:120° V:98°
Shutter: Rolling Shutter
Net Weight: 1.6g (With Cable)
Dimensions: L14mm*W14mm*H13mm
Package Included:
1x Mobula6 2024 1S 65mm whoop Drone Frame +Canopy
1x SuperX HD ELRS AIO flight controller
1x HDZero ECO VTX
1x HDZero ECO Camera
4x SE0702 KV28000 brushless motor
1x Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw)
1x Spare Canopy
1x Screw Driver
1x Propeller disassemble tool
