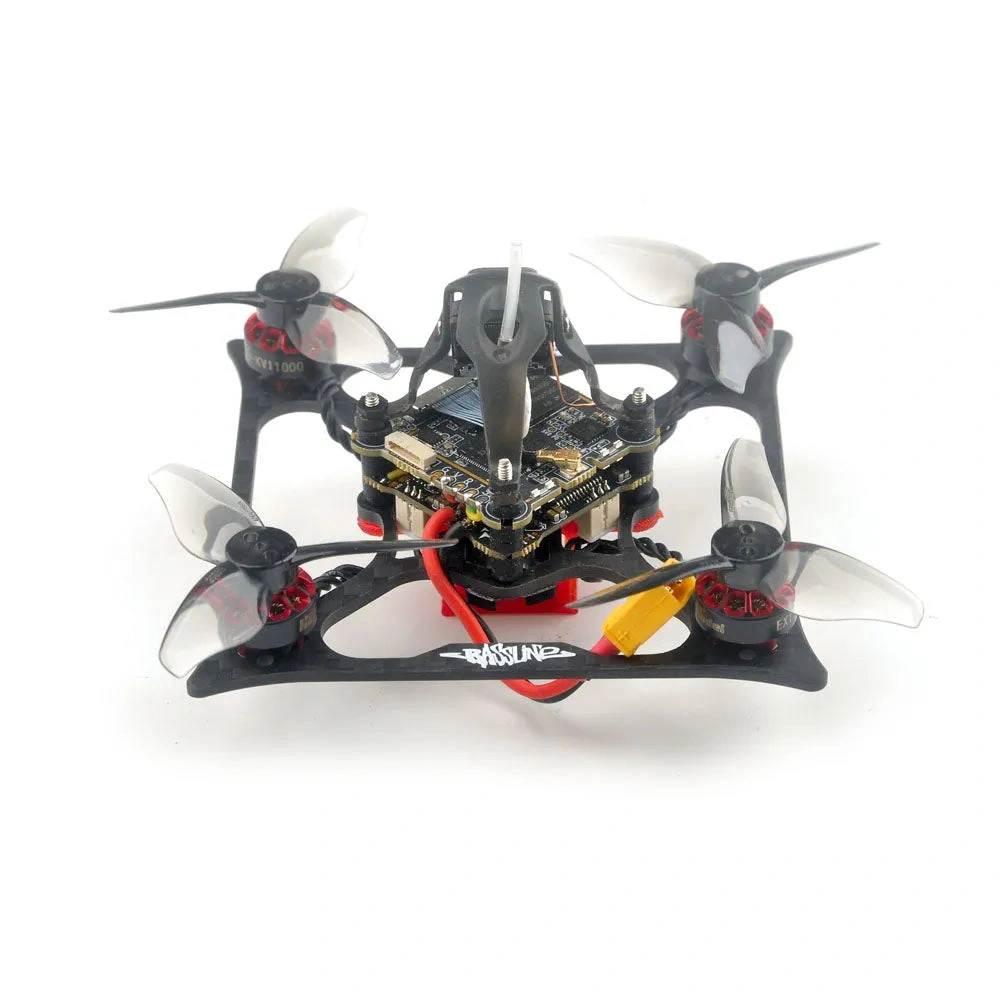

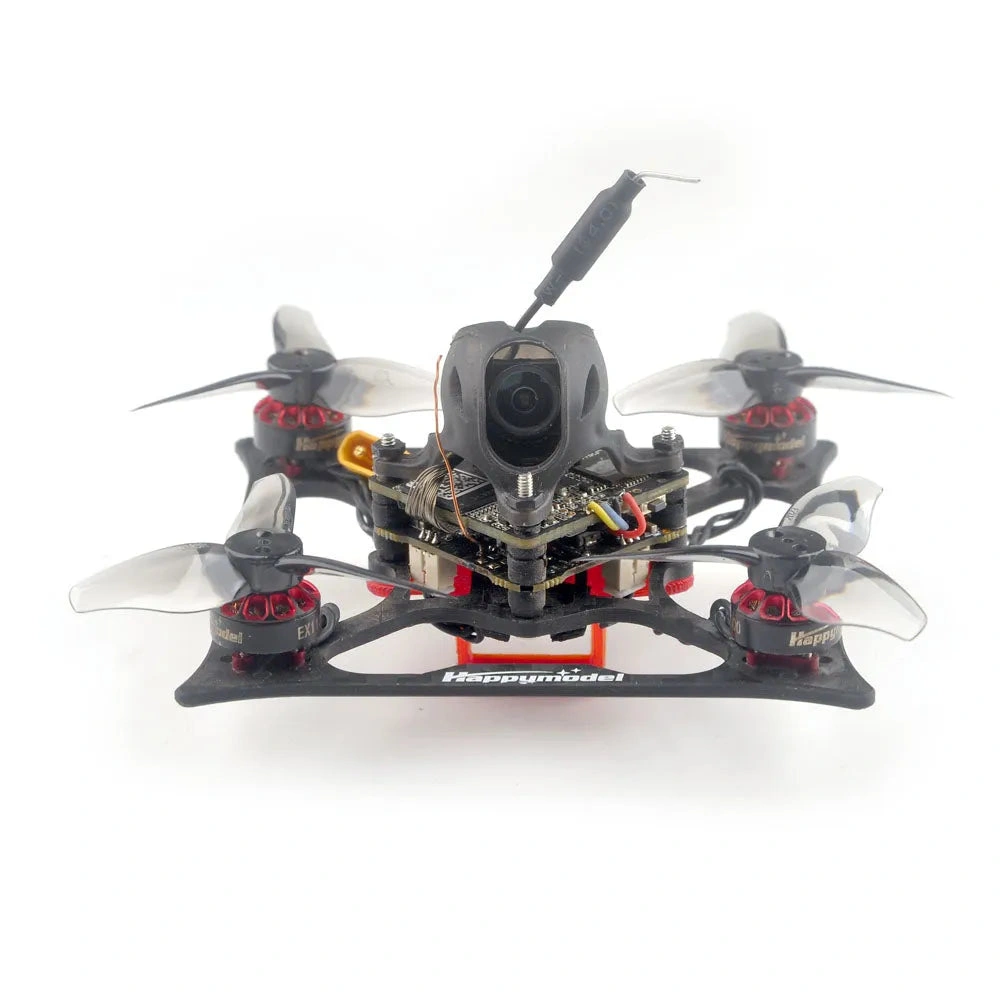

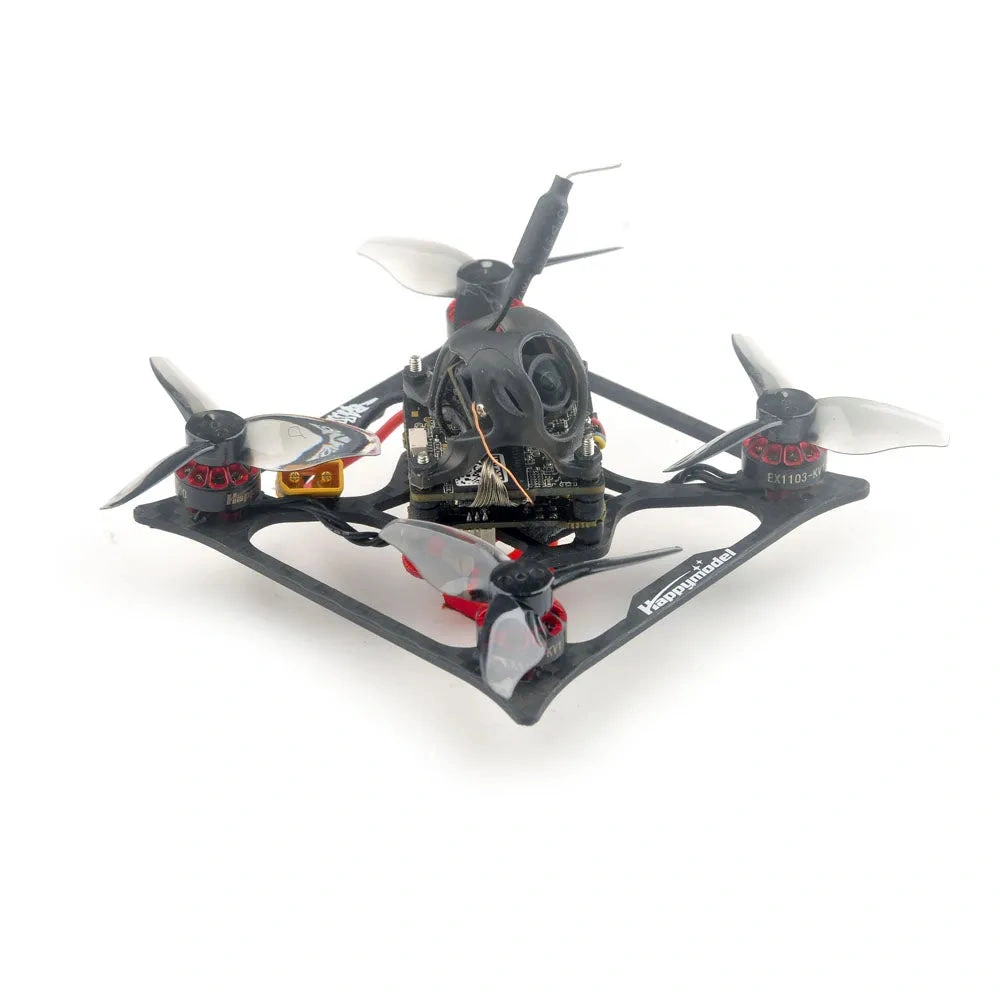

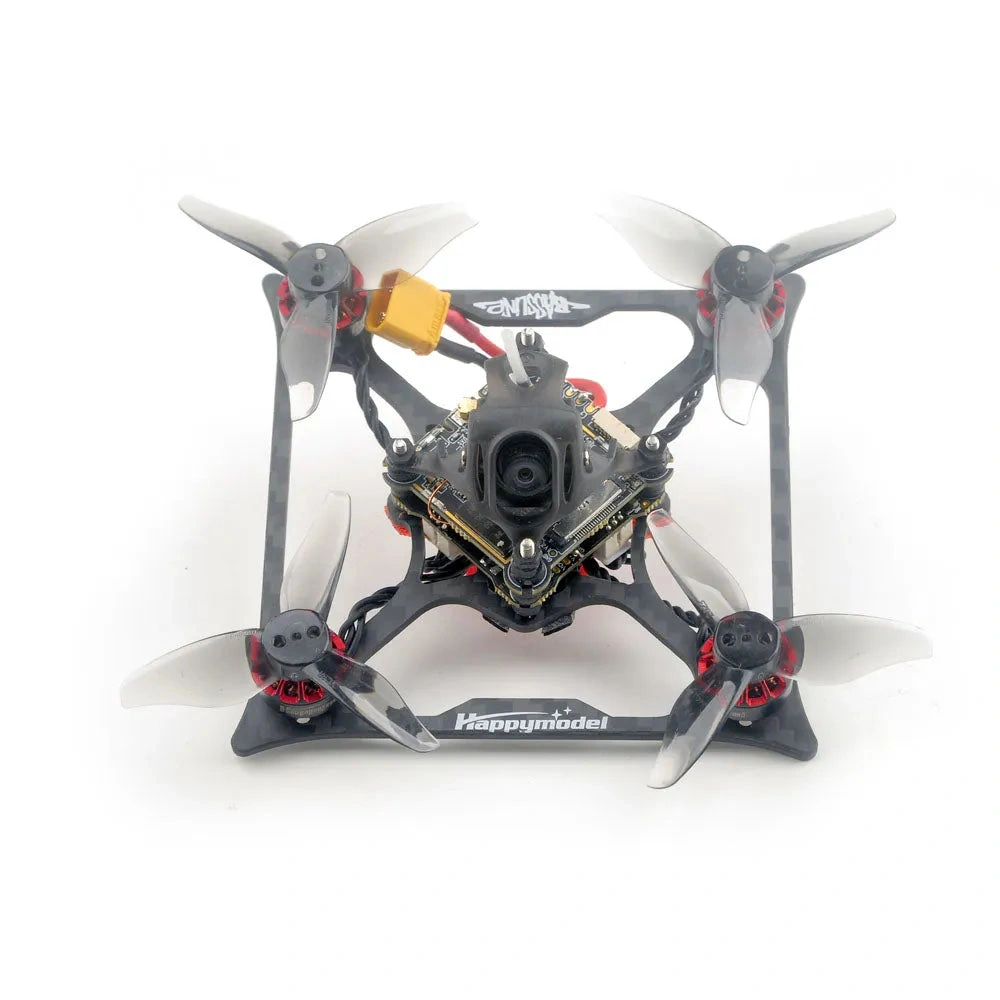

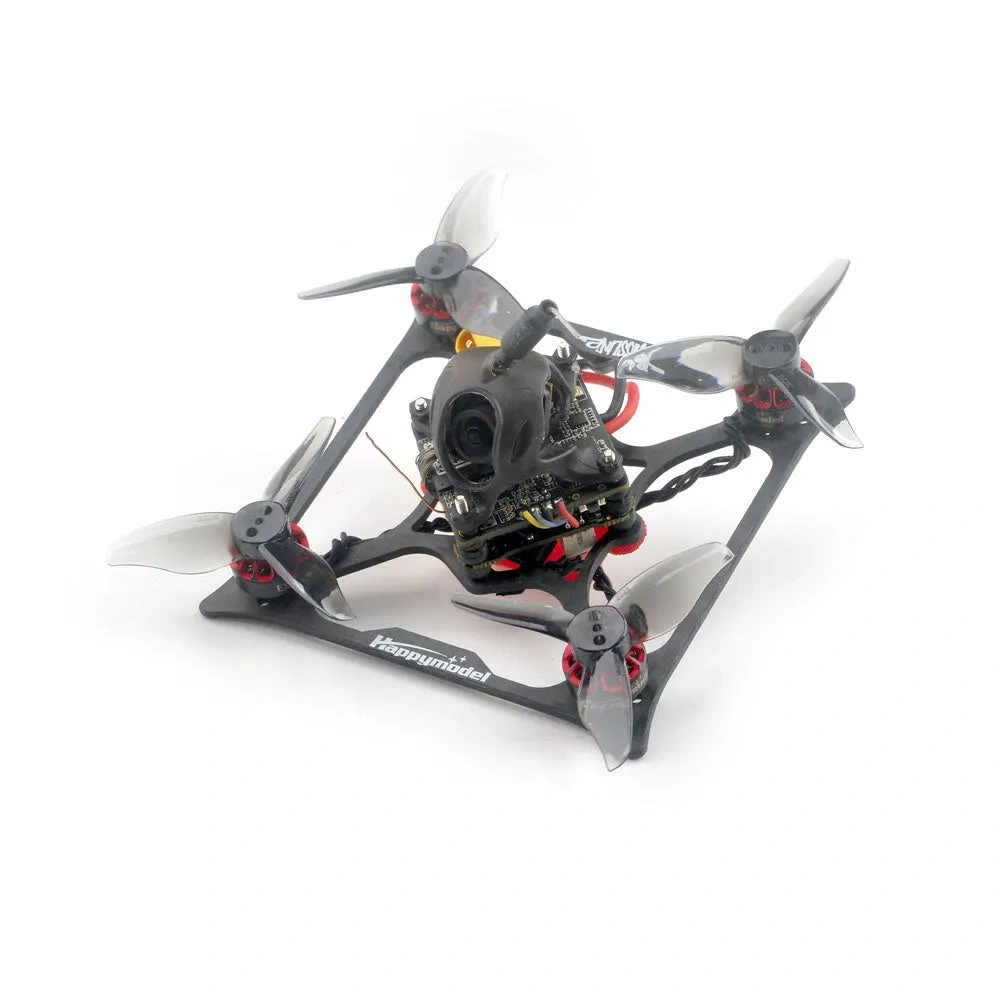

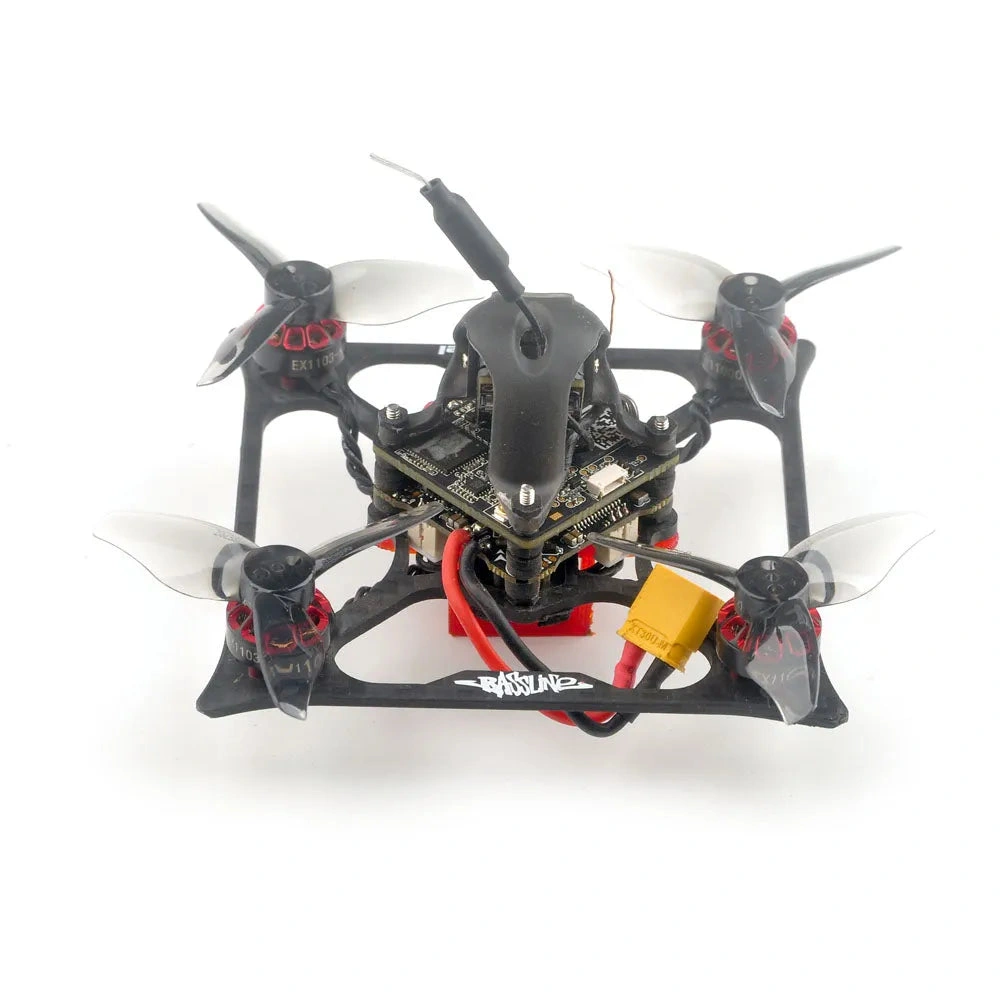

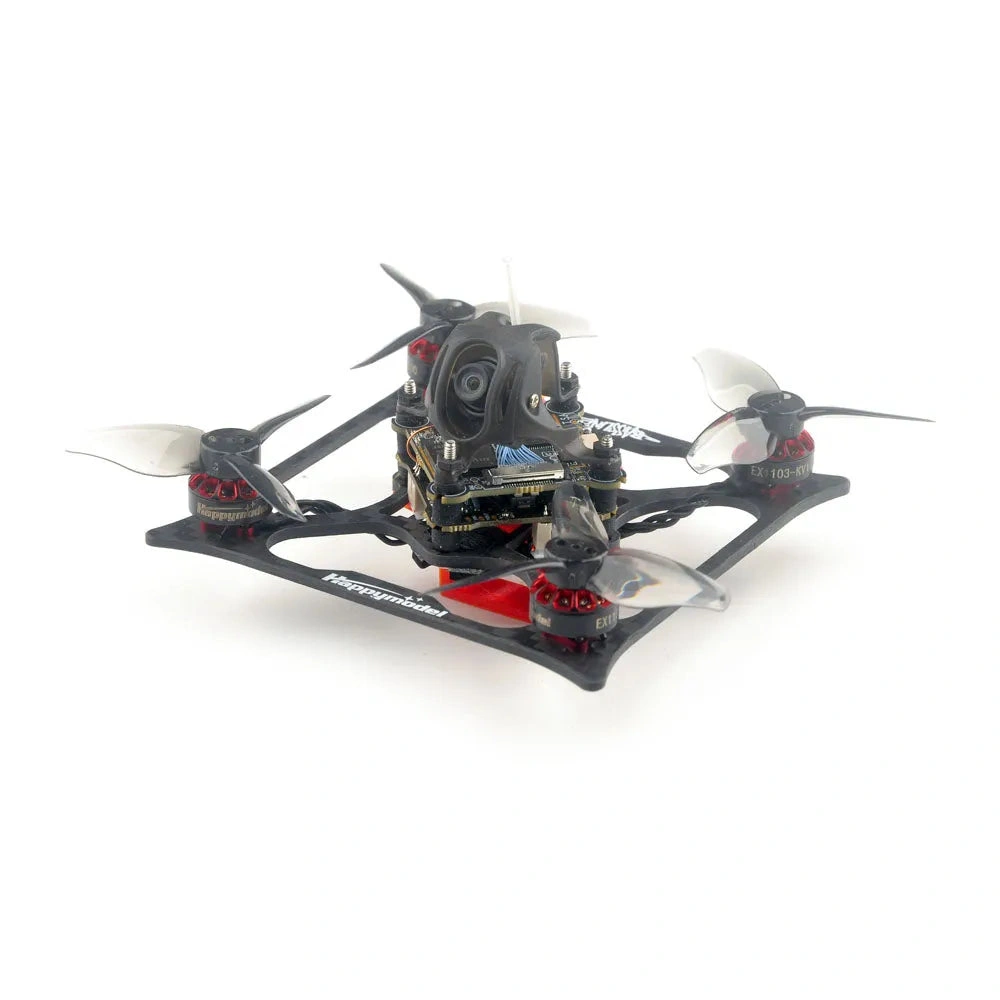

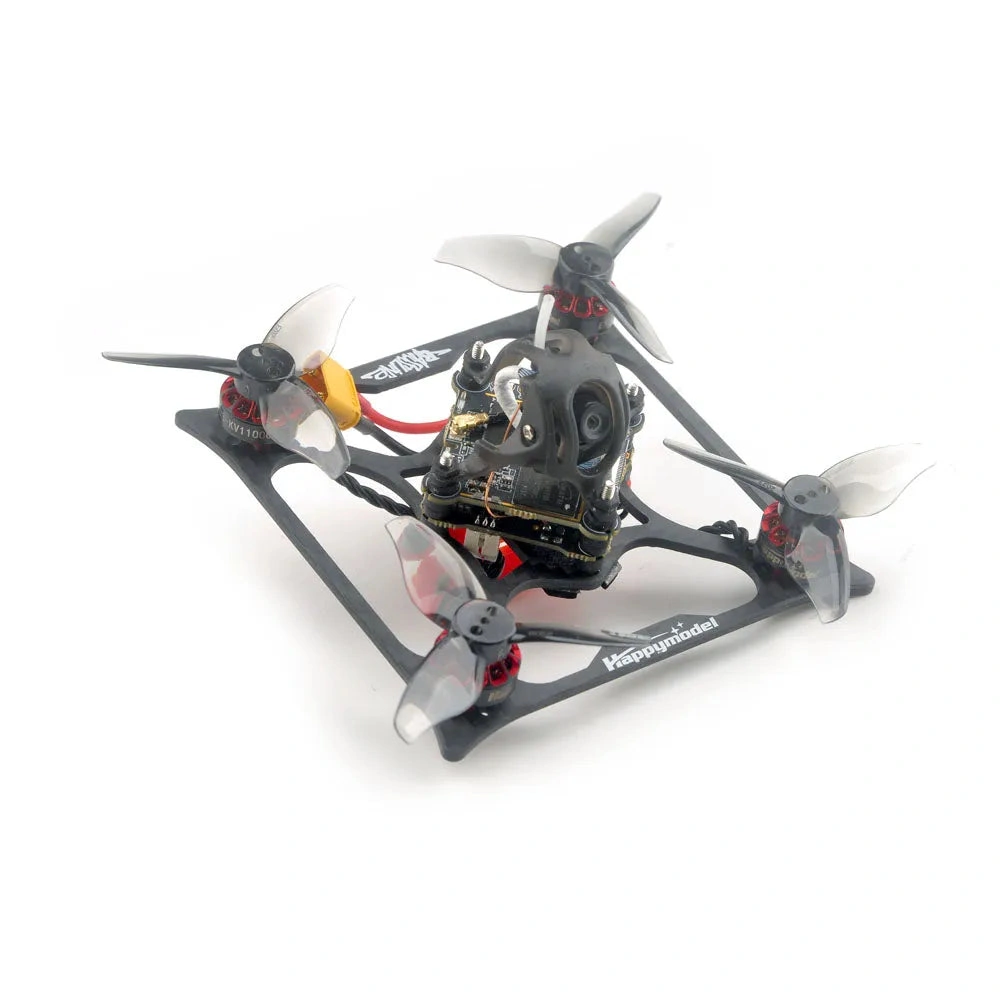

Looking for a high-performance drone that can keep up with your skills and demands? Look no further than the Happymodel Bassline Digital HD 2S Toothpick Drone! Equipped with an HD Digital VTX system and powerful EX1103 KV11000 motors, this drone is built to handle high-speed racing, acrobatic flying, and everything in between. With Walksnail or HDZERO VTX options, you can tailor the drone to your preferences and enjoy a truly personalized flying experience. The compact size and lightweight design make it easy to transport and fly in any environment. Choose between the SPI ELRS or UART ELRS receiver options to customize the drone to your liking.
Features:
HD Digital VTX system available
Walksnail HD or HDZERO optional
SPI ELRS or UART ELRS optional
Powerful EX1103 KV11000 motors
Recommend 2S 450mah/550mah/650mah battery (Not include)

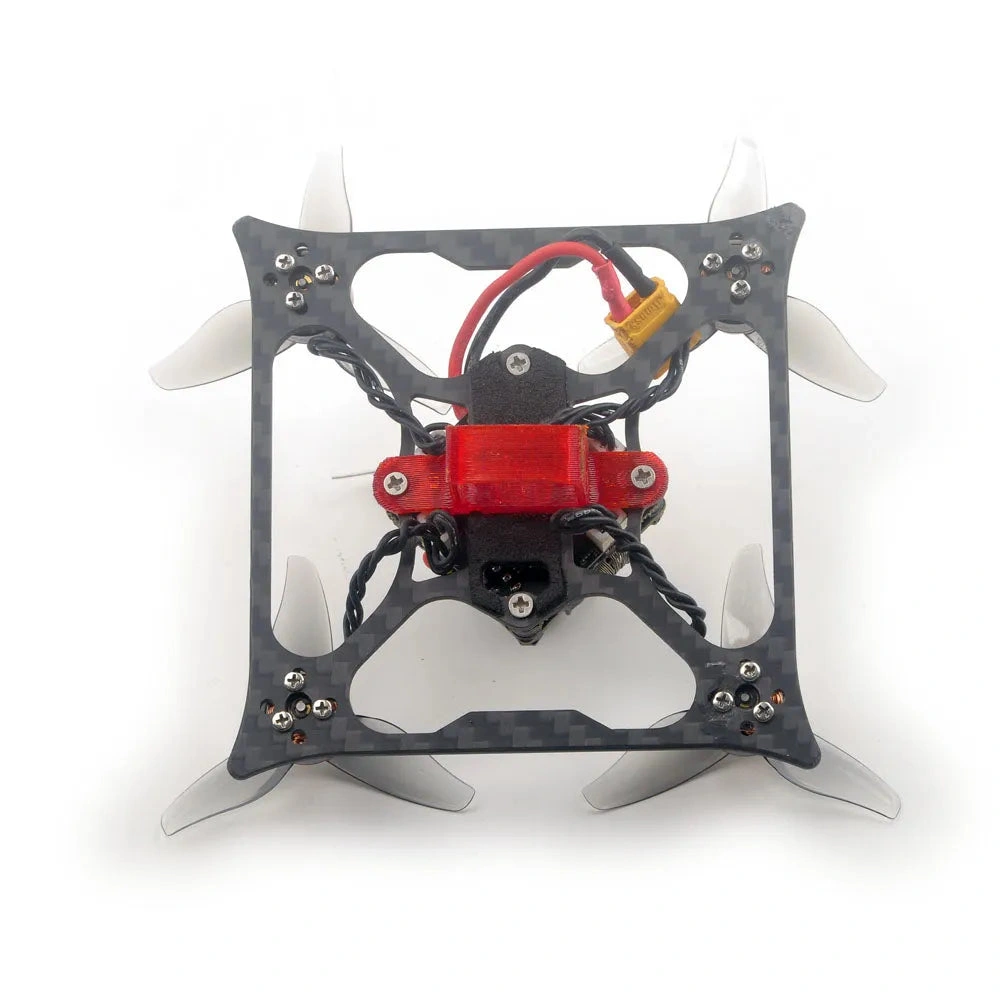

Battery tray size: Maximum support for batteries with a width of approximately 17mm and a height of approximately 13mm
Battery for happymodel Bassline HD 2s toothpick:
GNB 450mAh 2S Battery 7.6V 80/160C XT30 Plug
Specifications:
Brand Name: Happymodel
Item Name: Bassline Digital HD 2S toothpick FPV drone built-in Walksnail or HDZERO VTX
Wheelbase: 90mm
Size: 115mm*115mm*40mm

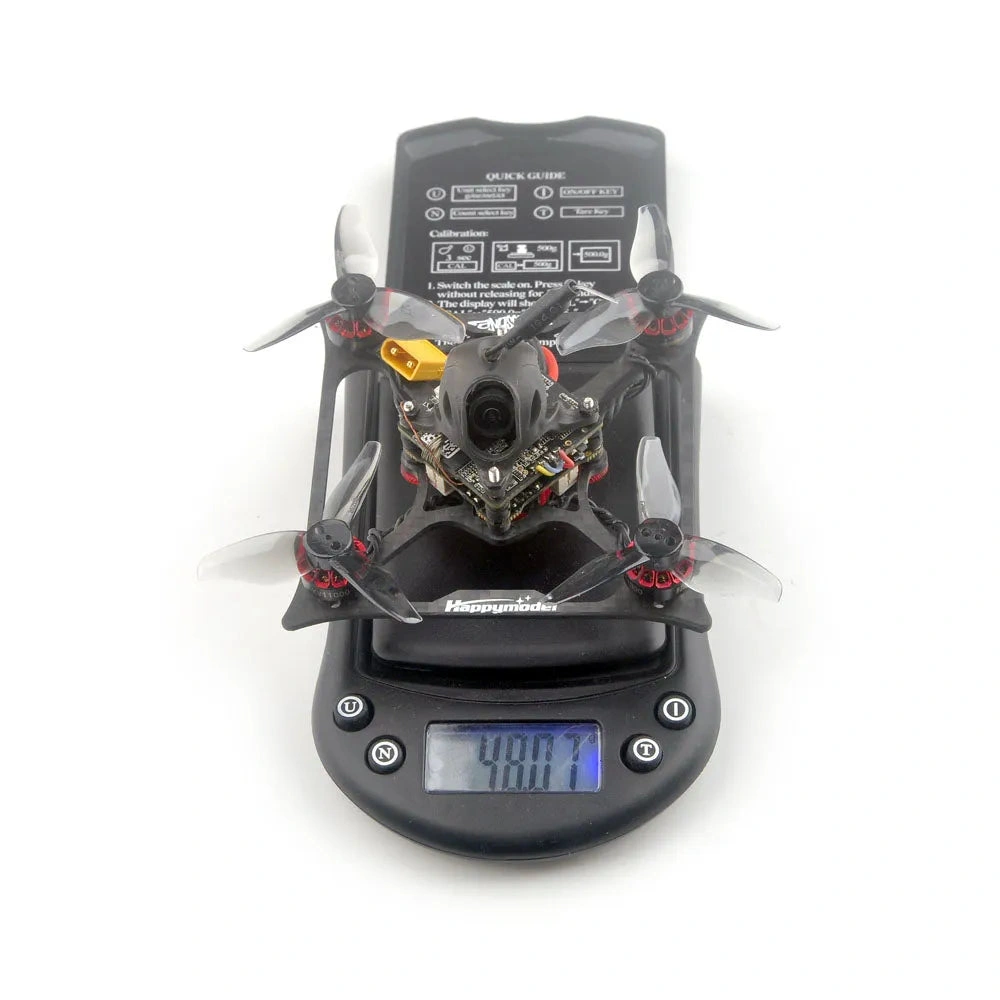

Weight: 46gram
Receiver version option:
2.4G SPI ELRS
2.4G UART ELRS

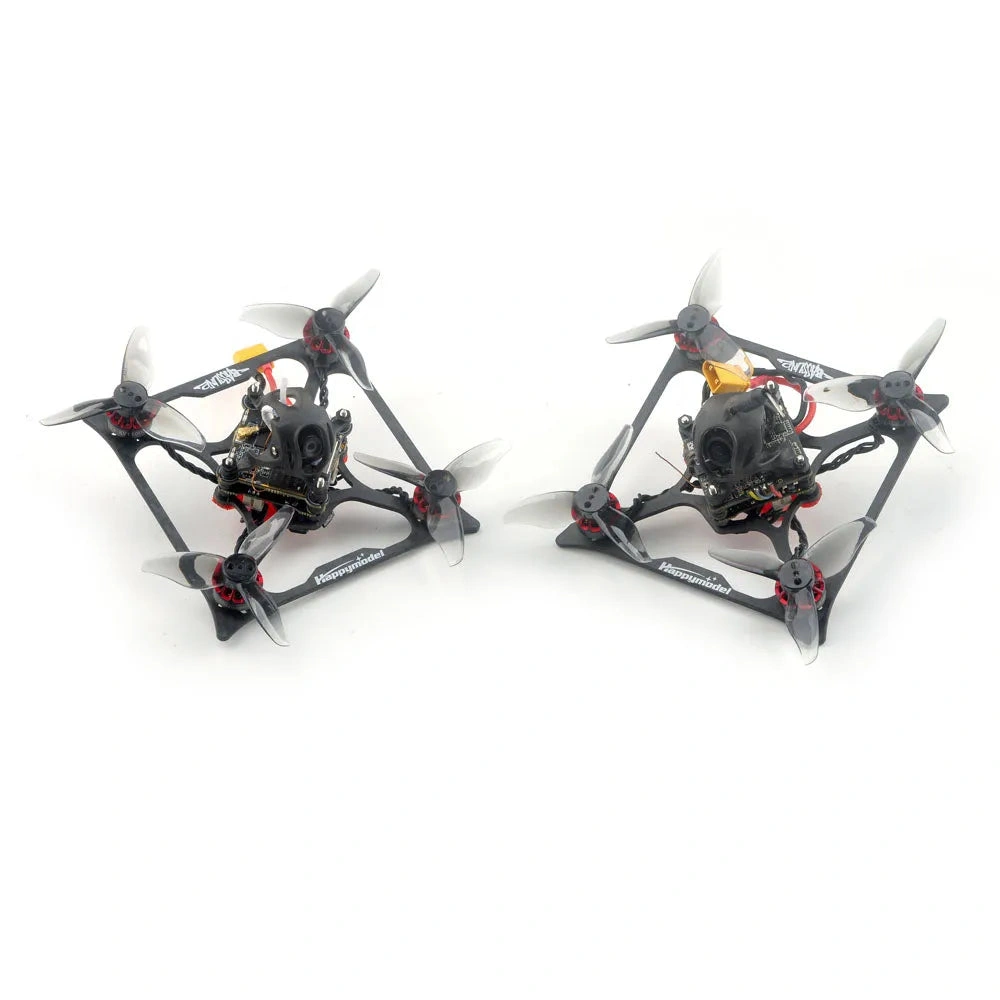

Digital HD VTX Option:
HDZERO version
WALKSNAIL version
Motor:
Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S
Propellers:
Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm
Flight controller:
X12 Lite flight controller built-in SPI ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
CrazyF411 ELRS flight controller built-in UART ELRS 2.4G receiver Target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor:BMI270 or ICM42688P(SPI connection)
Power supply:2S 6.5v~8.7v
Built-in 12A(each) Blheli_S 4in1 ESC(X12 Lite)
Built-in 20A(each)Blheli_S 4in1 ESC(CrazyF411 ELRS and Crazyf411 FRSKY)
Built-in Betaflight OSD(SPI Control)
Built-in SPI ExpressLRS 2.4G, UART ExpressLRS or SPI FRSKY D8/D16
Built-in voltage detection
Built-in current sensor
X12 Lite AIO Built-in Onboard 4in1 ESC
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Default Factory firmware: Bluejay 0.16
Firmware target:Z_H_30_48_v0.16
Default protocol: DSHOT300
CrazyF411 ELRS and FRSKY AIO Built-in Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7v/17v)
Currents: 20A continuous peak 25A (5 seconds)
Support BLHeliSuite programmable
Default Factory firmware: Bluejay 0.18
Firmware target: F_H_40_48_v0.18
Default protocol: DSHOT300
Onboard SPI ExpressLRS 2.4GHz Receiver
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Default Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware
Could flash FC firmware to support ExpressLRS v3.0 TX module
Onboard UART ELRS receiver Version
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna plug: IPEX
Telemetry output Power: <12dBm
Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1
HDZERO Version
HDZero Nano Lite Camera
14x16x11 mm
1.5gram
0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor
Excellent low light performance
Fov:
4:3: D:130° H:108° v:84°
16:9:D:122° H:108° V:65°
HDZero Whoop Lite VTX
1-3S Input
25mW/200mW RF Output-SmartAudio Support
25.5x25.5 M2 Soft Mounting- Antenna Retention
Removable Shielding Box- 32.5x32.5mm(29x29mm inner)
4.5grams/4mm Thickness (without shielding)
Walksnail Version
Camera
Model: Avatar lite camera
Image Sensor: 1/2.7”1nch
Resolution: 1080P/60fps,720P/120fps,720P/60fps
Ratio: 16/9 4/3
Lens: 2.1mm
FOV: 170°
Aperture: F2.0
Shutter Rolling: Rolling shutter
Min.Illumination: 0.001Lux
Weight: 1.8g
Dimensions: 14*14*16mm
VTX
Model: Avatar mini 1s module
Communication Frequency: 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm
MIC:<25dBm
I/O Interface: JST1.0*6(Power in)JST0.8*4(USB)
Mounting Holes: 25.5*25.5mm
Dimensions: 30*30*6.5mm
Storage: 8G
Recording: 1080p/720p
Weight: 5.1g
Operating Temperature: -20-40℃
Channels: 8
Wide Power Input : 3.1V-5V
Supported FC System Betaflight
OSD: Canvas mode
Bitrate: 25mbps 50mbps
Latency: Average delay 22ms
Antenna: IPEX
Package Included:
1X Bassline 2inch frame and canopy
Flight controller Option1: X12 Lite V1.0 flight controller built-in SPI ELRS 2.4G receiver
Flight controller Option2: CrazyF411 ELRS built-in UART ELRS 2.4G receiver
4X EX1103 KV11000 brushless motor
1X Gemfan toothpick 2023 tri-blade propellers(4cw+4ccw)
Digital HD VTX Option1: Walksnail Avatar HD mini 1s lite kit
Digital HD VTX Option2: HDZero Whoop Lite and nano lite bundle
1X Canopy for 14mmx14mm camera
1X Screw driver
